Refrigeration and Insulation Performance

(1) Efficient Refrigeration System: The vehicle is equipped with professional refrigeration equipment that can accurately control the temperature inside the cargo compartment, ensuring that the goods are always in a suitable low-temperature environment. Different temperature ranges can be set according to the preservation requirements of different goods. For example, 0 - 4℃ is suitable for the fresh-keeping transportation of fresh fruits and vegetables, and below -18℃ is suitable for the transportation of frozen meat, seafood, and other products. The refrigeration system operates stably and has a fast cooling speed. It can quickly reduce the temperature inside the compartment to the set value and maintain a constant temperature, effectively extending the shelf life of the goods and reducing cargo losses.

(2) Good Insulation Performance: The cargo compartment is made of high-quality insulation materials with good thermal insulation effect, which can effectively prevent external heat from entering the compartment and reduce the energy consumption of the refrigeration system. During transportation, even if the vehicle travels in a high-temperature environment for a long time, the temperature inside the compartment can remain relatively stable, ensuring that the quality of the goods is not affected. At the same time, the sealing performance of the compartment is good, preventing cold air leakage and further improving the insulation effect.

Performance and Power

(1) Stable and Powerful Power Output: Equipped with the Jiangxi Isuzu JE493ZLQ6K engine, which is a 4-cylinder in-line design with a displacement of 2.499L and a maximum power of 93kW (127 horsepower). The engine has mature technology and abundant power, which can meet the driving needs of the refrigerated truck under different road conditions and ensure that the goods are delivered on time and safely. Whether it is frequent start-stop in urban roads or long-distance transportation on highways, the engine can provide stable and reliable power to ensure the normal operation of the vehicle.

(2) Good Driving Performance and Handling: Adopting a 4X2 drive configuration, with a wheelbase of 3360mm, a front track width of 1585mm, and a rear track width of 1578mm. The reasonable chassis parameter design ensures the stability and handling performance of the vehicle during driving. The vehicle body size is 5.995×2.272×3.305m, with reasonable approach and departure angles, and the front suspension/rear suspension is 1.09m/1.545m, making the vehicle have good passability under various road conditions. It can easily handle complex road conditions such as narrow urban streets, parking lots, and rural roads. The maximum speed can reach 100km/h, which ensures transportation efficiency while complying with the driving regulations of refrigerated trucks.

Load-carrying Capacity and Space

(1) Spacious Cargo Space: The refrigerated cargo compartment measures 4.02×2.1×2.1m, with a large volume that can meet the loading needs of various cold chain goods. The interior space of the compartment is designed reasonably and can be flexibly arranged according to the type of goods and transportation requirements to improve space utilization. Whether it is the transportation of large refrigeration equipment or the distribution of bulk fresh food, it can be easily handled, providing sufficient cargo space for cold chain logistics.

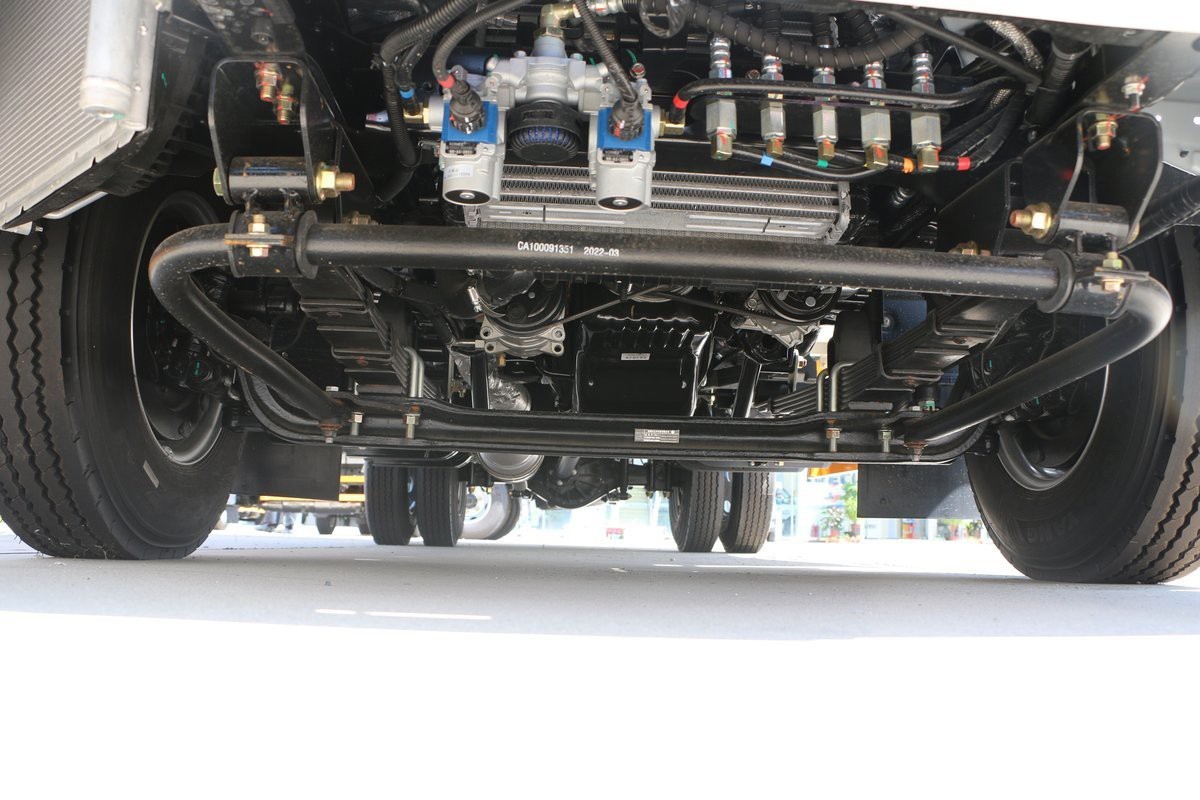

(2) Reasonable Load-carrying Capacity: The vehicle has a rated load of 1.125t and a maximum allowable total mass of 4.495t, which can carry a certain weight of goods while ensuring the safety and stability of the vehicle during driving. The suspension system of the vehicle is carefully tuned and equipped with 7/5+6 leaf springs, which can not only effectively buffer road bumps and protect the goods from vibration damage but also ensure the stability of the vehicle when carrying goods, ensuring the safety of cold chain transportation.

Safety and Convenience Configurations

(1) Reliable Safety Protection: Standard equipped with an ABS anti-lock braking system, which effectively prevents the wheels from locking during emergency braking, ensuring the stability and controllability of the vehicle during the braking process and reducing the risk of accidents caused by brake failure. In slippery road conditions and emergency braking situations, the ABS system can keep the vehicle on a stable driving path, providing a safer driving experience for the driver and protecting the safety of the goods. The braking system of the vehicle has a sensitive response and can provide reliable braking force to ensure driving safety.

(2) Practical Convenience Designs: The tire specification is 7.00R16LT 8PR, and the number of tires is 6, providing good load-carrying capacity and stability, adapting to different road conditions and load conditions. The vehicle is easy to operate. The 5-speed manual transmission has clear gearshifts, and the driver can flexibly shift gears according to road conditions and driving needs, improving driving comfort and fuel economy. In addition, the vehicle has a simple and elegant exterior design, which is easy to identify and convenient for management and dispatching during logistics transportation.
