JIANGXI ISUZU EC7 Model Single Cab Box - Type Van Truck
An Efficient and Practical Transportation Tool——Vacarfull Chinese Transportation Vehicle Export
Key words:
Automobile trade
Performance and Power
(1) Stable and Powerful Power Output: Equipped with the Jiangxi Isuzu JE493ZLQ6K engine, which is a 4-cylinder in-line engine with a displacement of 2.499L and a maximum power of 93kW (127 horsepower). The engine has mature technology and abundant power, which can meet the transportation needs of the truck under various road conditions. Whether it is a flat urban road or a slightly sloping rural road, it can provide stable power to ensure that the goods are delivered on time. It is equipped with a 5-speed manual transmission with clear gearshifts and strong controllability. The driver can flexibly select the appropriate gear according to different road conditions and load conditions to achieve efficient power transmission and fuel economy.
(2) Good Driving Performance and Passability: The vehicle adopts a 4X2 drive configuration, with a wheelbase of 3360mm, a front track width of 1680mm, and a rear track width of 1570mm. The reasonable chassis parameter design ensures the stability and handling performance of the vehicle during driving. The body length is 5.995m, the width is 2.18m, the height is 2.885m, the approach angle is 20 degrees, the departure angle is 16 degrees, and the front suspension/rear suspension is 1.09m/1.545m. These dimensions make the vehicle have good passability on urban roads and narrow sections, and can easily handle various road conditions and parking environments. The maximum speed can reach 100km/h, which ensures transportation efficiency while complying with the driving regulations of light trucks.
Load-carrying Capacity and Space

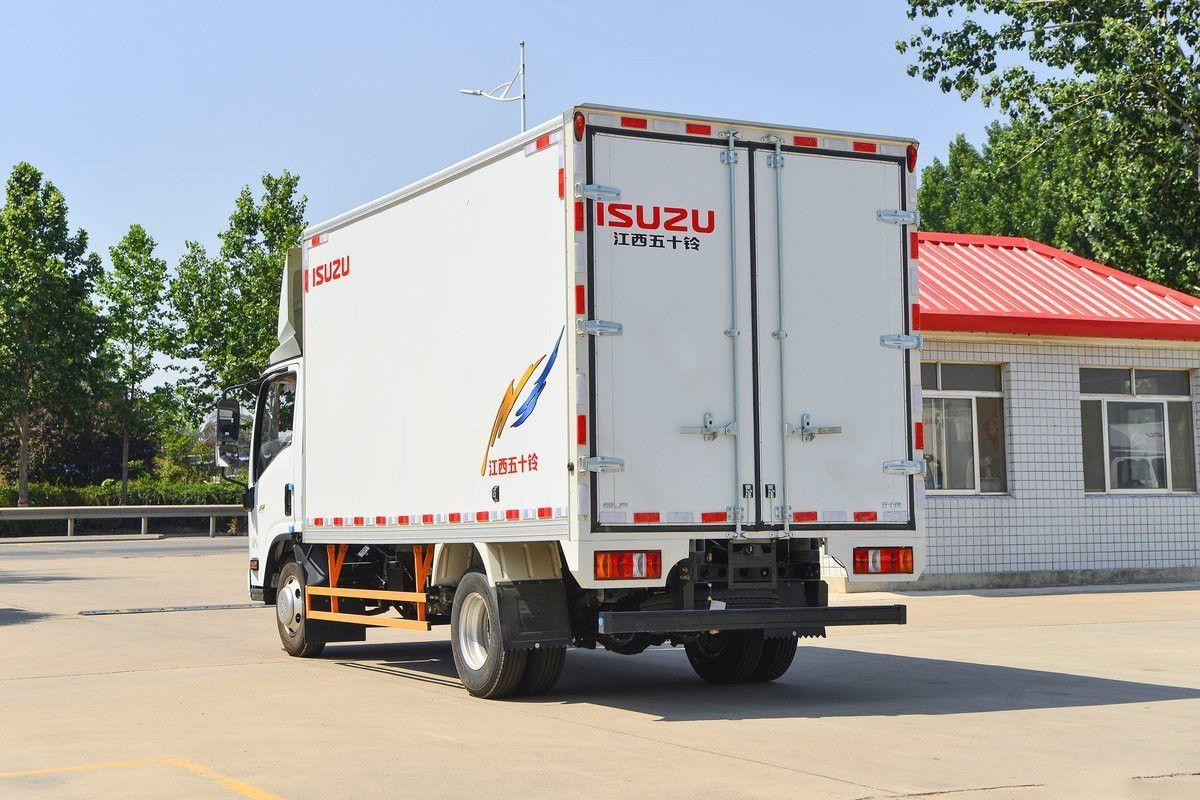

(1) Spacious Cargo Space: The cargo box adopts a box-type design, with a length of 4.2m, a width of 2.1m, and a height of 2.1m. The large volume can meet the loading needs of different types of goods. The box-type structure can effectively protect the goods from wind, rain, and external damage, ensuring the safety of the goods during transportation. The rated load of the vehicle is 1.56t, and the maximum allowable total mass is 4.495t, with strong load-carrying capacity. It can transport various lightweight but bulky goods, such as express parcels, daily necessities, and small equipment, providing sufficient space and load-bearing capacity for commercial transportation.

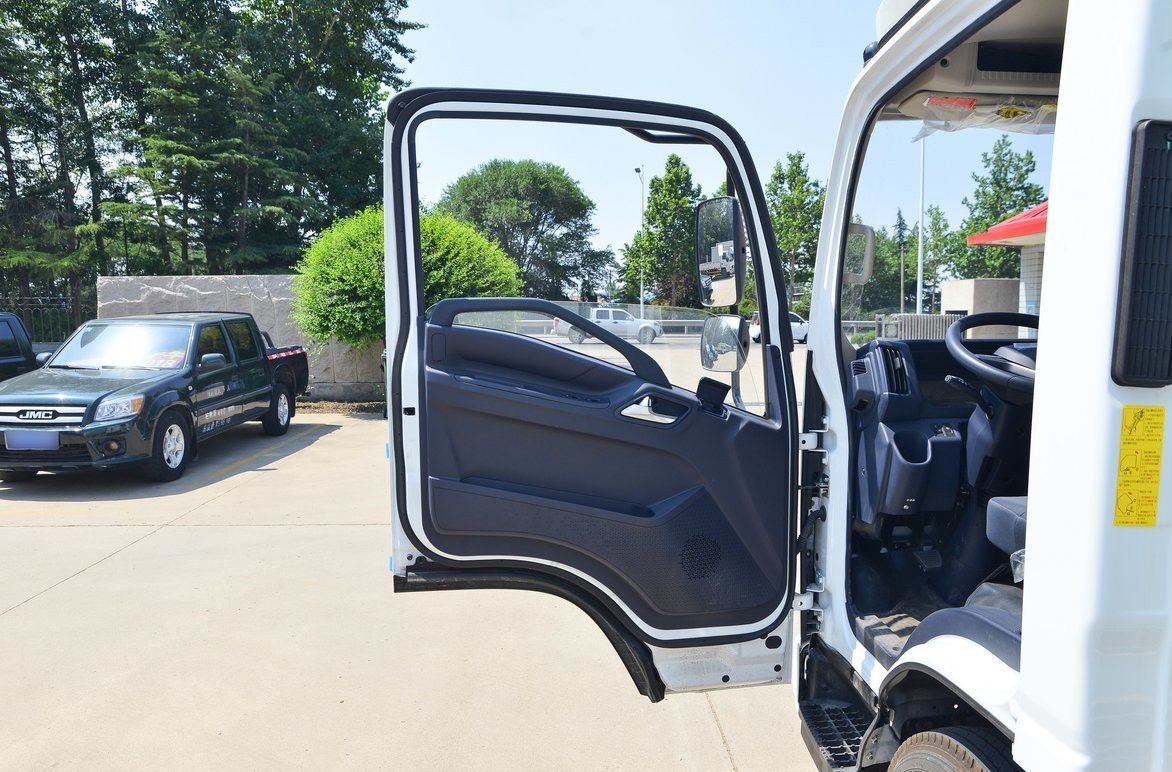

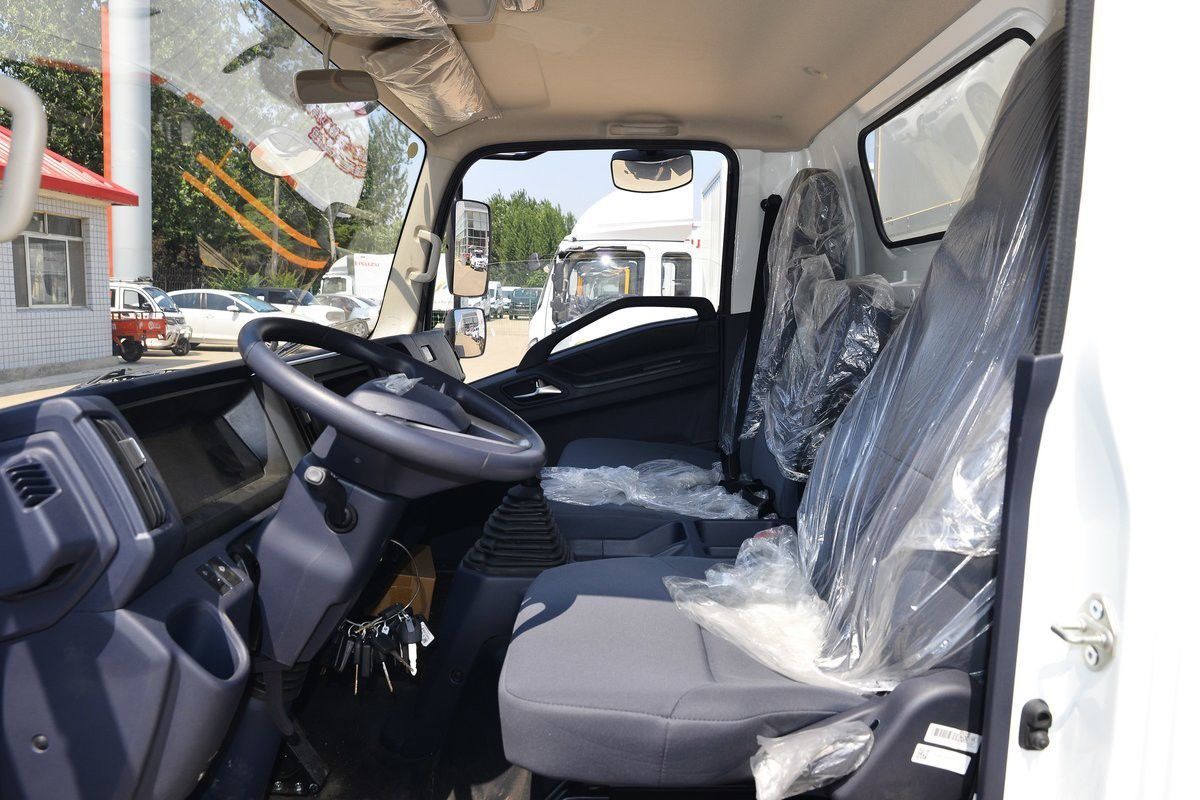

(2) Reasonable Body Layout: The single-row cab design can seat 3 people, meeting the transportation personnel needs while maximizing the space for the cargo area. The cab length is 2050mm, and the interior space is spacious, providing a comfortable driving environment for the driver and reducing the fatigue of long-time driving. The seats are designed according to ergonomics, providing good support and comfort, helping the driver maintain a good driving state and improving driving safety.
Safety and Convenience Configurations
(1) Reliable Safety Protection: Standard equipped with an ABS anti-lock braking system, which effectively prevents the wheels from locking during emergency braking, ensuring the stability and controllability of the vehicle during the braking process and reducing the risk of accidents caused by brake failure. In slippery road conditions and emergency braking situations, the ABS system can keep the vehicle on a stable driving path, providing a safer driving experience for the driver and protecting the safety of the goods. The braking system of the vehicle is carefully tuned to provide reliable braking force to ensure driving safety.
(2) Practical Convenience Designs: The tire specification is 7.00R16LT 8PR or 7.00R16LT 10PR, and the number of tires is 6, providing good load-carrying capacity and stability, adapting to different road conditions and load conditions. The allowable load on the front axle is 1840KG, and the allowable load on the rear axle is 2655KG. The reasonable axle load distribution ensures the safety and stability of the vehicle when carrying goods. The vehicle is also equipped with multiple leaf springs, with 3 in the front suspension and 5+2 in the rear suspension, which can effectively buffer road bumps, protect the goods from vibration damage, and improve driving comfort. In addition, the operation of the vehicle is simple and convenient, and the operations such as shifting, clutch, and braking are designed in a user-friendly way, which is convenient for the driver to operate and improves transportation efficiency.
| Brand Model | ISUZU EC7 |
| Product Label | 127 HP 4.2-Meter Box |
| Model Name | Single Cab Box-Type Van Truck |
| Basic Information | |
| Vehicle Class： | Van Truck |
| Drive Configuration： | 4 X 2 |
| Wheel Base (mm)： | 3360 mm |
| Box Length： | 4.2 m |
| Engine： | Jiangxi Isuzu JE493ZLQ6K |
| Gearbox： | 5-Speed Gearbox |
| Rear Axle Ratio： | 4.875 |
| Body Length： | 5.995 m |
| Body Width： | 2.18 m |
| Body Height： | 2.885 m |
| Front Track Width (mm)： | 1680 mm |
| Rear Track Width (mm)： | 1570 mm |
| Vehicle Weight (t)： | 2.805 t |
| Rated Load (t)/ Load Capacity (t)： | 1.56 t |
| Curb Weight (t)： | 4.495 t |
| Maximum Speed (km/h)： | 100KM/h |
| Place of Production： | Nanchang City Jiangxi Province, China |
| Truck Class： | Light Truck |
| Approach Angle： | 20 Degree |
| Departure Angle： | 16 Degree |
| Front Suspension / Rear Suspension： | 1.09/1.545 m |
| Fuel Type： | Diesel Fuel |
| Brand Model | ISUZU EC7 |
| Product Label | 127 HP 4.2-Meter Box |
| Model Name | Single Cab Box-Type Van Truck |
| Basic Information | |
| Drive Configuration： | 4 X 2 |
| Wheel Base (mm)： | 3360 mm |
| Box Length： | 4.2 m |
| Rear Axle Ratio： | 4.875 |
| Body Length： | 5.995 m |
| Body Width： | 2.18 m |
| Body Height： | 2.885 m |
| Front Track Width (mm)： | 1680 mm |
| Rear Track Width (mm)： | 1570 mm |
| Front Suspension / Rear Suspension： | 1.09/1.545 m |
| Cargo Box Parameters | |
| Cargo Type： | Box-Type |
| Cargo Length (m)： | 4.2 m |
| Cargo Width (m)： | 2.1 m |
| Cargo Height (m)： | 2.1 m |
| Cab Parameters | |
| Cab Length (mm)： | 2050 mm |
| Occupancy (Number of Passengers Permitted)： | 3 |
| Seat Rows： | Single Row / Single Cab |
| Brand Model | ISUZU EC7 |
| Product Label | 127 HP 4.2-Meter Box |
| Model Name | Single Cab Box-Type Van Truck |
| Engine | |
| Engine Model： | Jiangxi Isuzu JE493ZLQ6K |
| Engine Brand： | Jiangxi Isuzu |
| Number of Cylinders： | 4 Cylinders |
| Vehicle Energy Type： | Diesel Fuel |
| Engine Cylinder Arrangement： | InLine Engine |
| Vehicle Emissions (L)： | 2.499 L |
| Maximum Output Power (kw)： | 93 kw |
| Maximum Horsepower： | 127 hp |
| Brand Model | ISUZU EC7 |
| Product Label | 127 HP 4.2-Meter Box |
| Model Name | Single Cab Box-Type Van Truck |
| Transmission Parameters | |
| Transmission Model： | 5 Speed Transmission |
| Shift Mode： | Manual Transmission |
| Forward Gear： | 5 |
| Reverse Gear： | 1 |
| Chassis Parameters | |
| Allowable Load On Front Axle (kg)： | 1840 KG |
| Allowable Load On Rear Axle (kg)： | 2655 KG |
| Axle Ratio： | 4.875 |
| Number Of Spring Plates： | 3/5+2 |
| Brand Model | ISUZU EC7 |
| Product Label | 127 HP 4.2-Meter Box |
| Model Name | Single Cab Box-Type Van Truck |
| Tire | |
| Tire Specification： | 7.00R16LT 8PR, 7.00R16LT 10PR |
| Number Of Tires： | 6 |
| Control System Configuration | |
| Anti-Lock Brake System （ABS）： | ● |
| Notes：● Standard configuration | |
